Type:Bridge Module

Model Number:1756-EN2T

Connection:Ethernet/IP

Ports:1

Motion Axes Supported:8

TCP/IP Connections:128

CIP Connections:256

Connector Type:RJ45 Copper

Operating Voltage:220 V

Material:Aluminum

Dimensions:135mm x 74mm x 32mm

Weight:0.3kg

Certifications:[“CE”,”UL”,”CSA”]

Environment Rating:IP20

Operating Temperature:-10°C to +60°C

Storage Temperature:-40°C to +85°C

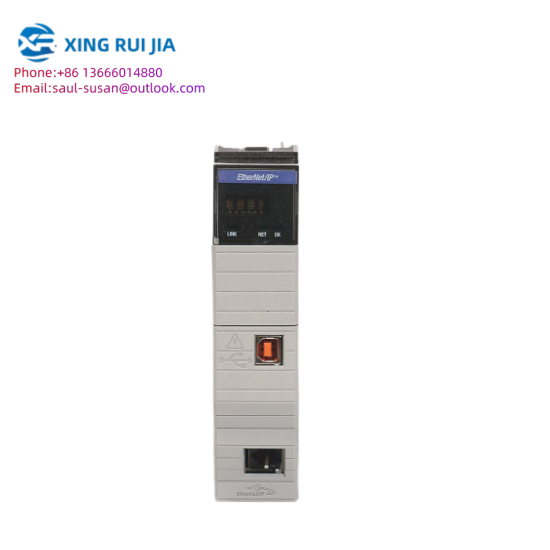

    This ControlLogix Ethernet/IP Bridge Module by Allen Bradley is designed for high capacity and reliability in industrial automation environments. It facilitates seamless communication between ControlLogix systems and Ethernet/IP networks, enhancing productivity and operational efficiency.

    Featuring an open-type enclosure, this module is built for robust performance across a wide range of industrial conditions. Its temperature rating ensures stable operation in diverse climates, making it suitable for various applications from cold warehouses to hot manufacturing floors.

    The 1756-EN2T/A module supports a power dissipation of 5.1 W, ensuring efficient power management without overheating. With continuous isolation of 30 V, it guarantees high levels of electrical safety and system integrity.

    Equipped with 802.3 compliant shielded or unshielded twisted pair connection cables, the module ensures reliable data transmission even in environments prone to interference. This feature is particularly beneficial in industries where signal integrity is critical.

    Designed for compatibility with ControlLogix systems, this Ethernet/IP Bridge Module from Allen Bradley offers a straightforward integration solution, allowing for easy setup and maintenance. Its compact size and durable build make it a valuable addition to any industrial automation project.
