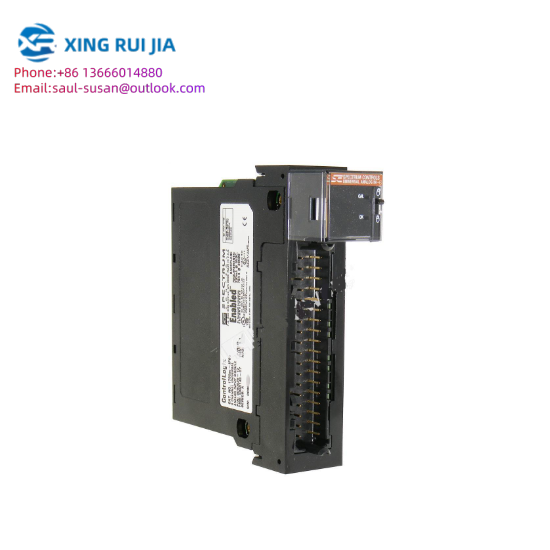

Manufacturer:Allen-Bradley

Model:1756SC-IF8U

Type:ControlLogix Analog Input Module

Quantity of Input Channels:8

Input Range:-10VDC to +10VDC or 0VDC to +24VDC

Accuracy:+/- 0.5% Full Scale

Sampling Rate:Up to 1000 samples per second

Communication Protocols:[“ControlNet”,”EtherNet/IP”]

Power Consumption:Max 6.2 Watts

Operating Temperature:-20°C to +60°C

Dimensions:1.00 lbs (Approx. 0.45 kg)

Connector Type:36-pin

Configuration:Supports HART Communication

    Engineered for robust performance in harsh industrial settings, the 1756SC-IF8U module boasts a compact design that fits seamlessly into existing control systems.

    With its wide input range compatibility, it ensures compatibility with a multitude of sensor outputs, providing flexibility and adaptability in various applications.

    Equipped with advanced data processing capabilities, this module offers high accuracy and reliability, making it ideal for critical monitoring tasks in manufacturing processes.

    The inclusion of Communication Protocol (ControlNet) enables seamless integration with other Allen-Bradley components and third-party devices, enhancing system interoperability.

    Designed with ease of maintenance in mind, the module features straightforward installation and quick diagnostics through onboard LEDs and external connections, facilitating efficient troubleshooting and setup.
