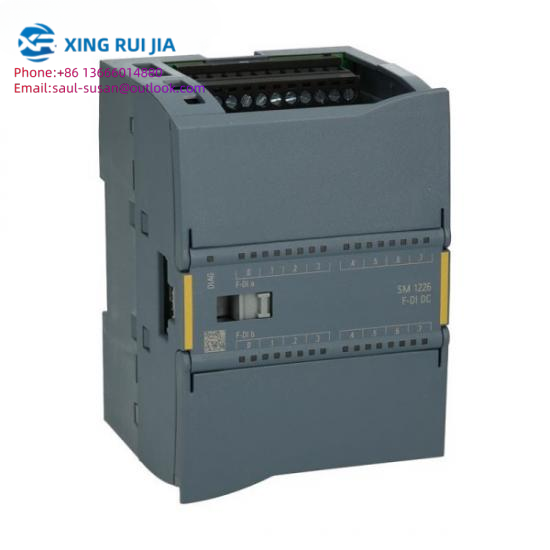

Model Number:6ES7226-6BA32-0XB0

Module Type:Digital Input Module

Quantity of Channels:16

Signal Type:F-DI

Supply Voltage:24VDC

Current Rating:Maximum 50mA per channel

Operating Temperature Range:-25°C to +60°C

Communication Interface:Profinet

Dimensions (WxHxD):94 x 128 x 235 mm

Weight:Approx. 0.5 kg

IP Protection Class:IP20

Mounting Type:Panel-Mounted

Operating System Compatibility:Windows 7, Windows Server 2008 R2

    This module is a key component for integrating Siemens S7-1500 controllers into industrial control systems, offering precise digital input monitoring with a high degree of reliability. Its compact size and modular design make it suitable for space-constrained applications, ensuring efficient use of resources in any manufacturing environment.

    Featuring a wide temperature range of operation (-25°C to +60°C), this module can withstand harsh industrial conditions, providing continuous performance even in challenging environments. Its robust construction ensures durability and longevity, reducing maintenance needs and downtime.

    With 16 input channels capable of detecting multiple events or signals, this module allows for the flexible setup of monitoring systems. Whether tracking machine states, sensor outputs, or environmental conditions, its versatility supports a broad spectrum of industrial applications.

    Each channel supports a variety of input types, including digital signals from sensors or switches, enabling seamless integration with diverse equipment and systems. The low power consumption ensures minimal energy usage, contributing to overall operational efficiency.

    For advanced integration, consider the availability of fieldbus modules such as DeviceNet, Profibus, LonWorks, and CANopen, which can be optionally added to facilitate communication between different devices within an industrial network. This capability enhances system interoperability, streamlining data exchange and control across various components.
