Power Rating:1450 VA at 1200 VDC

Operating Voltage Range:1000V – 1500V

Current Rating:120 A

Temperature Range:-40°C to +175°C

Switching Frequency:up to 50 kHz

Insulation Resistance:≥ 10 MΩ

Operating Ambient:5°C to 40°C

Storage Temperature Range:-40°C to 85°C

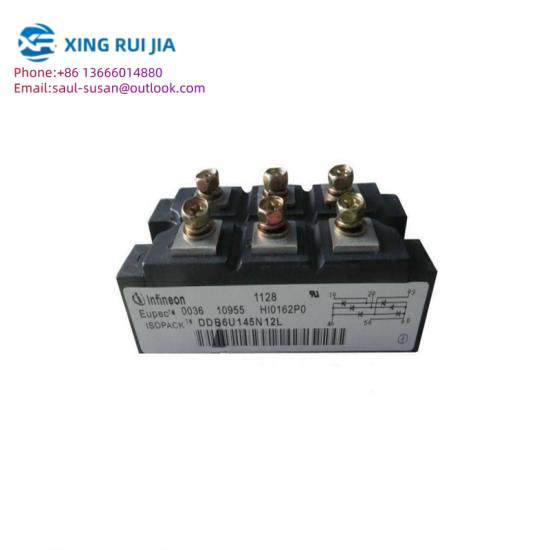

    The Eupec DDB6U145N12L IGBT Module is engineered to deliver unparalleled performance in high-power applications, ensuring smooth and efficient operation under demanding conditions.

    Featuring advanced semiconductor technology, this module boasts a high power density combined with robust insulation properties, making it suitable for environments where reliability and longevity are paramount.

    Designed with an emphasis on thermal management, the IGBT Module incorporates a thermal pad and heat sink for optimal heat dissipation, ensuring stable performance even in extreme temperatures ranging from -40°C to +175°C.

    Its wide operating voltage range of 600VDC allows for versatile integration across various industrial systems, enhancing compatibility and adaptability for a broad spectrum of applications.

    Equipped with a peak current rating of 1200A, this module is capable of handling high currents efficiently, making it ideal for motor drives, HVAC systems, and other applications requiring precise control and high-power delivery.
